automatic saw AKS2000

The sawing machine AKS2000 is used to cut insulating profiles for passive house windows to measure. The profile parameters can be stored in the controller.
The positioning of the Styrofoam pieces is made automatically.

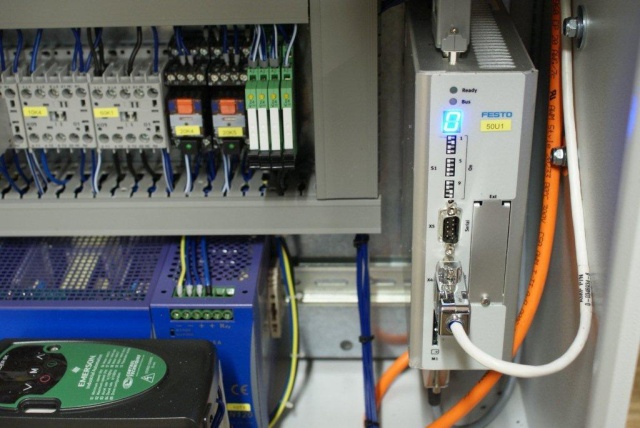

The control of the system is taken over by an Festo FED-500.
Communication with the motor controller CMMS-ST takes place via CAN bus.

• FED-CEC Controller (Festo)
• FED-UIM E/A-Modul (Festo)
• FED-501 operating device (Festo)
• Section axis DGC / pneumatic (Festo)
• Transport axis EGC + EMMS + CMMS (Festo)
  (spindle axis + stepper motor + motor controller)
• More pneumatic-components by Festo

band saw system

The band saw system is part of the complex production facility for innovative massive timber-lightweight boards of Dendrolight Latvija GmbH in Latvia.

The project involved PLC- and HMI-programming, electrical planning, construction of the switchgear and also cabling and commissioning on site in Latvia by HRW Automation GmbH.

• Servos and converters (SEW)
• Protection switches and power supply (Siemens)
• Control technology (Beckhoff)

automated drilling system ABA2500-LC

The automated drilling system ABA2500-LC drills automated holes in several plastic pipes or profiles with a maximum length of 2,5m
(such as pipe distributor or grates).

The necessary profile- and drillparameter can be saved in the controlling. The drilling process then runs with this parameters automated.
The adjustable work piece-parameter can be free positioned over the whole processing path. To switch to another pipe or profile just the admissions have to be changed.

• Beckhoff Industry-PC control (EtherCAT)
• X-axis toothrf belt axis ELGA 2650mm (Festo)
• Z-axis pneumatic Kurzhubschlitten 50mm (Festo)

automated drilling system ABA6000

The automated drilling system ABA 6000 drills holes in prescribed grids in several profiles with a maximum length of 6m.

The necessary profileparameter can be saved in the controlling.
The positioning runs automated.

• Beckhoff Industry-PC control (EtherCAT, CAN)
• X-axis Berger Lahr double axis combination 6500mm
• Y-axis SMC short stroke actuator 150mm
• DC-drives for proflie height and drilling height

turning machine (Retrofit)

Modernization (so-called Retrofit) of a so far mechanical and over supports controlled turning machine, for the machining of trapezoidal spindels with a wholesome NC-control.

• Flexible processing
• Securing of recurring programs in the NC memory
• Easy data handling by USB

• Sinumerik 802D sl (Siemens)
• ADI4 – analogue drive interface (Siemens)
• Servo motors and controller (Stöber)

dust extraction unit

The HRW Automation GmbH had been audited by the company CeATec for programming the automation and visualization of the dust extraction unit from the high-grade steel foundry Breitenfeld AG.

• CPU315-2DP (Siemens)
• HMI – 2x TP177B, 1x OP73 (Siemens)
• In-/output periperals (Siemens)

Process air control

Reconstruction or new construction of several process air controls on printing machines of a notable Austrian large printing plant.

During the printing process it is important, that solvent content and process air pressure fit perfectly. This is arranged by various precisely coordinated PID-controllers, which are influenced by pressure and temprature sensors.
The networking of the process air-CPU to the frequency converter, the machine and to the HMI-system is supplied directly via Ethernet.

• Electrical planning (ELCAD)
• Programming the control software (Rockwell CompactLogix)
• Programming the guide systeme software (Wonderware INTOUCH)
• Delivering of the complete switchgears (PLC, FU’s, …)
• Delivering of the HMI-components (IPC, Touch-Display, Intouch Runtime)
• Connection of the process air-CPU to the CPU of the printing machine

• Rockwell CompactLogix control (Ethernet CPU)
• Rockwell PowerFlex 700 frequency converter (networked via Ethernet)
• Beckhoff Industry PC (networked via Ethernet)
• IQ Automation Touch-Display
• Wonderware INTOUCH guide system software
